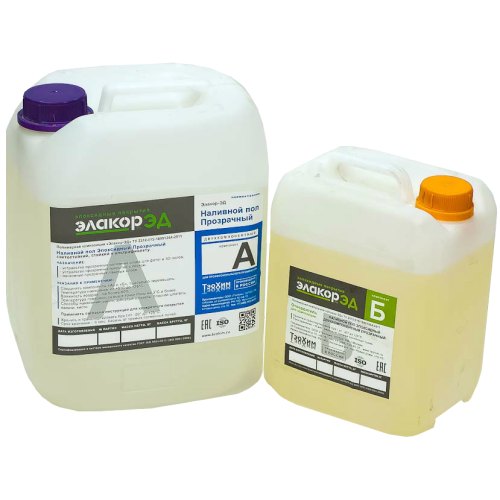

Elakor-ED Self-levelling Floor Transparent — transparent epoxy floor for 3D coatings
ELAKOR

Elakor-ED Self-levelling Floor Transparent — transparent epoxy floor for 3D coatings

Epoxy floors

The transparent compound is used for 3D floors, floors with encapsulated photographs and decorative elements, “stone carpet” and inserts in floors and walls. Lightfastness per ISO 9370-2017 is 6 (“very good”), gloss 95–100 %, Shore D hardness 75–80. According to the technical data sheet, work is carried out at air and substrate temperatures from +10 to +20 °C; foot traffic is permitted after 3 days, full load after 7 days.

Specifications

ManufacturerElakor — OOO “TEOKHIM-PROM”, Moscow Region
Typeepoxy floors
Useretail and public premises, wet rooms, chemically resistant, decorative
Basetwo-component fully transparent epoxy self-levelling floor with improved lightfastness; composition: epoxy resin, hardener, functional additives
Colourtransparent; gloss 95-100%
Packaging“A” + “B” = Kit 17.8 kg + 10.2 kg = 28 kg
Application methodTransparent coatings: 3D floors, “stone carpet”, floors with encapsulated decorative elements, decorative inserts in floors and walls; on concrete, sand concrete, levelling compounds, stone, brick. Surface dry, clean, free of oils (lay 3D film and photos wearing gloves); relative air humidity not more than 80%; surface temperature difference not more than 3°C during application and for 10-12 hours afterwards. Squeegee rake with a notched blade or whiskers, notched trowel; roll with a spiked roller; working time not more than 30 minutes; do not cover during curing.
Application temperatureair and surface: from +10°C to +20°C; material: from +10°C to +20°C
Curingpot life on the surface at 20.0±2.0 °C at least 20 min; drying to degree 3 not more than 8 h; at +10…+20°C: after 3 days – foot traffic, after 7 days – full load
Key propertiesA:B ratio by weight 100:57 (may vary); non-volatiles 100%; density 1.06 kg/l; adhesion to glass not more than 1 point; Shore D hardness (day 28) 75-80; gloss at 60° 95-100%; Taber abrasion CS-10, 1000 g – not more than 22 mg; lightfastness (ISO 9370-2017) 6 – “very good”; film resistance to static exposure to water at least 48 h, xylene at least 48 h, butyl acetate at least 24 h (at (20±2)°C); fire hazard class KM2; chemical resistance: water, salt and alkali solutions of any concentration, acid solutions up to 10-20%, oils and fats of all kinds, organic solvents, petrol, diesel fuel
Layer thicknesslayer thickness 1..6 mm
Consumption1.06 kg per 1 m² at a layer thickness of 1 mm
Shelf lifestore and transport at temperatures from 0° to +25°C
StandardsFire safety certificate “Elakor-ED”

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
