TIZOL

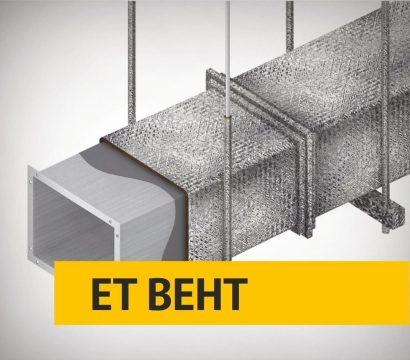

ET VENT — fire insulation for air ducts
Air duct fire protection system of foil-faced basalt MBOR F on PLAZAS adhesive compound: fire resistance from 30 to 240 minutes.
Price on request
TIZOL

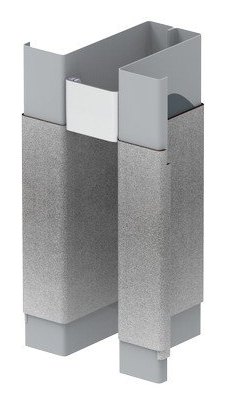

ET LSTK structural fire protection for light-gauge thin-walled steel structures
Light-gauge thin-walled steel structures (LSTK) are protected with a separate TIZOL system, ET LSTK. It is based on MBOR-F basalt material on PLAZAS adhesive compound, while EURO-LIT board is used for I-sections and Z-profiles. Fire resistance ratings are R15–R90; NSOPB certificates have been issued for LSTK and separately for Z-profiles. Applications include residential buildings, including those of 6 storeys and above, warehouses and long-span structures; the warranty service life is at least 25 years.
Specifications
| Manufacturer | TIZOL — AO TIZOL, Nizhnyaya Tura |
|---|---|
| Fire protection performance | R15–R90 |
| Application | steel structures |
| Base | PLAZAS adhesive compound + MBOR-F 5–26 mm; for I-sections and Z-profiles — EURO-LIT board |
| Standards | TU 23.99.19-013-08621635-2020; TU 23.99.19-018-08621635-2020; TU 5762-011-08621635-2009; TR 48588528-LSTK-2022 |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
Other materials by TIZOL
TIZOL
PLAZAS heat-resistant adhesive compound for TIZOL fire protection systems
Ready-to-use mastic on a silicate binder — adhesive for basalt materials in all ET fire protection systems; non-combustible, does not expand when heated.
Price on request
TIZOL
ET METALL for steel structures — TIZOL board fire protection
Board fire protection of steel structures with EURO-LIT on PLAZAS adhesive for enclosed premises: from group 7 (15 minutes) to 240 minutes.
Price on request
TIZOL
TIZOL-Krovlya roofing system — fire-resistant roof on profiled sheeting
Fire-resistant non-trafficable roof on steel profiled sheeting lined with EURO-LIT board: RE 30 and K0(30), snow regions up to III.
Price on request
TIZOL

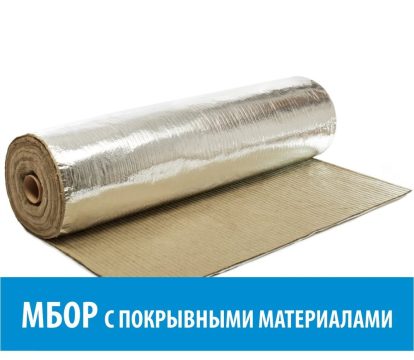

MBOR with facing materials (MBOR-S, MBOR-S2, MBOR-SS, MBOR-B, MBOR-KS)
MBOR basalt rolls faced with foil, fibreglass fabric, fibreglass mesh or basalt fabric for fire protection of equipment, pipes and ship ventilation.
Price on request
TIZOL

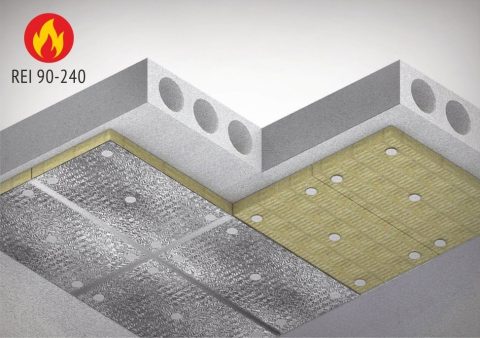

ET BETON for reinforced concrete structures — TIZOL fire protection
Board fire protection of reinforced concrete with anchor-fixed EURO-LIT: from REI 90 to 240 minutes, installation possible at sub-zero temperatures.
Price on request
