OgneVent®-K fire-resistant cable duct
Modular duct of fire protection panels for cable lines of fire protection systems: fire resistance of 90 or 180 minutes.

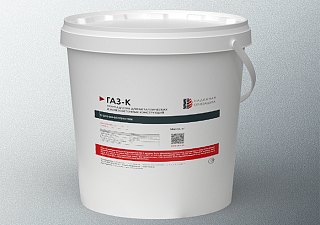

GAZ-K prepares the substrate for KROZ fire protection compounds — on steel, reinforced concrete and over existing paint coatings. It is a concentrate based on an aqueous dispersion of styrene-acrylic resins, which is diluted with water before use. The primer is applied in one coat by spray, roller or brush; the next coat can be applied after 20–60 minutes. In addition, the primer protects steel against corrosion; it has no fire protection function of its own.
| Manufacturer | KROZ — OOO KROZ, Dyatkovo |
|---|---|
| Application | steel structures, concrete and reinforced concrete |
| Base | aqueous dispersion of styrene-acrylic resins with additives and fillers (concentrate, diluted with water); non-volatile content 45–50% |
| Colour | uniform semi-gloss |
| Application method | spray (airless or pneumatic), roller, brush |
| Drying | to the next coat 20–60 min (degree 3 to GOST 19007-73) |
| Standards | TU 2313-009-54737814-2006 |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
Modular duct of fire protection panels for cable lines of fire protection systems: fire resistance of 90 or 180 minutes.
Board on a mineral binder for fire protection of steel structures: R45–R180, fixed with self-tapping screws, installation also at sub-zero temperatures.
Foil-faced basalt mat on PVK-2002 compound for fire protection of air ducts: ratings from EI 30 to EI 240.
Composite board for fire protection of reinforced concrete, including concrete strengthened with CFRP: 60, 120 and 180 minutes.
Superfine basalt fibre mats for fire protection of ventilation and smoke exhaust air ducts: from EI60 to EI180.
Water-based intumescent paint for steel structures (15–120 minutes) and reinforced concrete (REI 120), for indoor work.
