KROZ

OgneVent®-K fire-resistant cable duct

Fire protection of cable lines

OgneVent-K is a duct made of fire protection panels (sides, bottom, lid) inside which the cables of fire protection systems are laid. Sections up to 1200 mm long are produced with cross-sections from 200 to 1050 mm on each side; other sizes are made to order. The duct is assembled on threaded studs and mounting plates, and the joints are sealed with PVK-2002 compound; the design allows repeated installation and dismantling. Fire resistance is 90 or 180 minutes, and the service life is at least 20 years.

Specifications

ManufacturerKROZ — OOO KROZ, Dyatkovo
Fire protection performance90 min, 180 min
Applicationcable lines
Packagingsections up to 1200 mm long, cross-section (200–1050)×(200–1050) mm; other sizes to order
Application methodassembly on threaded studs and mounting plates, self-tapping screws; joints sealed with PVK-2002
StandardsTU 5716-021-54737814-2010

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.

Other materials by KROZ

KROZ

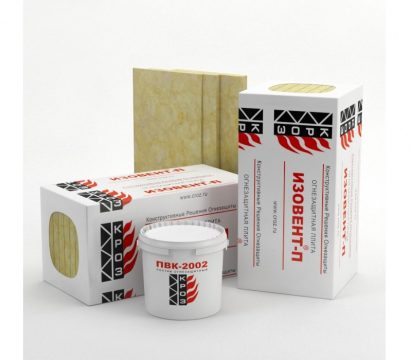

IZOVENT®-P basalt fire protection board
