Kalmatron

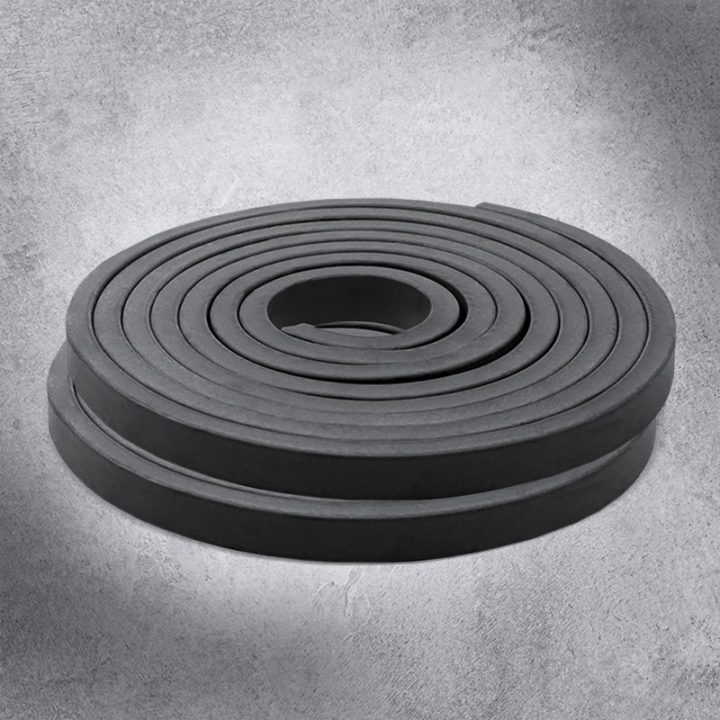

Ultraplat bentonite cord — swelling profile for construction joints
The Ultraplat bentonite cord is laid in the construction joint before concreting: the flexible profile on a bentonite-rubber base swells when wetted and seals the joint. Swelling after 5 h is at least 200%, after 24 h at least 400%, and resistance to hydrostatic pressure is 7 atm. The cord is installed in a continuous loop on rubber adhesive or mesh, joined butt-to-butt or overlapped without welding; installation is possible from −15 to +50 °C, including during reconstruction of service penetrations.
Specifications
| Manufacturer | Kalmatron — OOO “Kalmatron-SPb”, Saint Petersburg |
|---|---|
| Type | waterstops and swelling profiles |
| Use | joints and abutments, foundations and basements |
| Base | self-expanding flexible profile of rectangular cross-section on a bentonite-rubber base |
| Packaging | cardboard boxes of 40 linear m |
| Application method | for construction joints and service penetrations (new construction and repair); laid in a continuous loop with tight contact; fixing with rubber adhesive (wait 5–6 min, press for 2–3 min) or with PVC/metal mesh with a mesh size from 10 mm on nails or dowels; joined butt-to-butt or with a 0.1 m overlap, without welding; protect from water before concreting, on a damp substrate concrete no later than 12 h; when reconstructing penetrations — a chase at least 70 mm deep and at least 50 mm wide, stop leaks with Kalmastop, caulk with Kalmatron-Shovny |
| Application temperature | from −15 to +50 °C |
| Key properties | density at least 1.4 g/cm³; swelling after 5 h at least 200%, after 24 h at least 400%; watertightness — filtration coefficient max 2.0×10⁻⁹ m/day; flexibility on a bar R=25 mm at −40 °C — no cracks; tensile strength at break at least 0.4 MPa; relative elongation at break at least 200%; watertightness at a pressure of 0.35 MPa for at least 2 h; resistance to hydrostatic pressure 7 atm |
| Standards | TU 5775-001-54282519-2010; certificate of conformity ROSS RU.AZh33.N00388 (15.04.2019–14.04.2022); expert opinion 77.01.16.P.004917.05.13 |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
