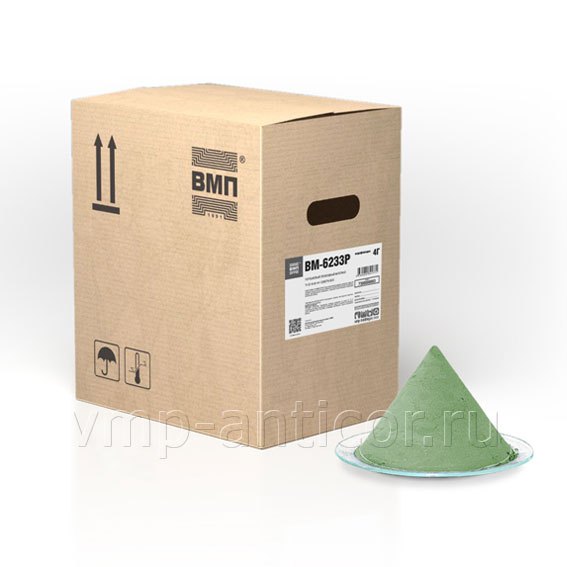

VM-6233R — epoxy powder for factory pipe coating

Other anticorrosion materials

VM-6233R is not a paint for on-site painting but an epoxy powder material for manufacturers of pipes, pipe fittings and pipe products. The powder is sprayed onto a heated pipe by manual mechanised methods or on automatic lines, and it cures by residual heat. The coating can be single-layer, the first coat of a two-layer system with VM-8352N or the first coat of a combined system with polyethylene or polypropylene. The service temperature is from −73 to +110 °C; the material is not intended for contact with drinking water and foodstuffs.

Specifications

ManufacturerVMP — AO “NPKh VMP”, Yekaterinburg
Typeanticorrosive material
Baseone-component epoxy powder material (epoxy resin, fillers, functional additives); grades 4G, 8G, 11G, 13G
Colourgreen (shade not standardised)
Packagingcorrugated cardboard boxes with a polyethylene liner bag, 30 kg net each; flexible “big bag” containers, 1,000 kg net each
Application methodcuring by residual heat, cooling with air or a water shower to no more than 93 °C; single-layer system or combined with a polyolefin adhesive and top layer (polyethylene, polypropylene)
Application temperaturesurface temperature of the product at the inlet: single-layer system — 218–253 °C, combined — 190–227 °C; preheating not above 260 °C
Dryinggel time at 205 °C: 4G — 7.6–11.4 s, 8G — 16–24 s, 11G — 24–36 s, 13G — 36–54 s; curing time at 232 °C, max.: 60, 90, 110, 140 s respectively
Key propertiesservice temperature of the coating — from −73 to +110 °C, cathodic disbondment radius (24 h, (65±3) °C, 3.5–3.8 V, 3 % NaCl) — max. 3 mm, flexibility at −30 °C at a deflection angle of 3.0° — no damage, impact resistance 1.5 J at −30 °C — no breakdown at (1.75±0.25) kV, glass transition temperature Tg1 — 55–67 °C, Tg2 — 102–114 °C, specific gravity of the powder — 1.39–1.49 g/cm³; moisture — max. 0.5 %
Compatible materialssingle-layer coating; first coat of a two-layer system with VM-8352N; combined system with a polyolefin coating
Shelf life12 months when stored at no more than +27 °C and humidity no more than 80 %
StandardsTU 20.16.40-140-12288779-2023

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
