BentIzol

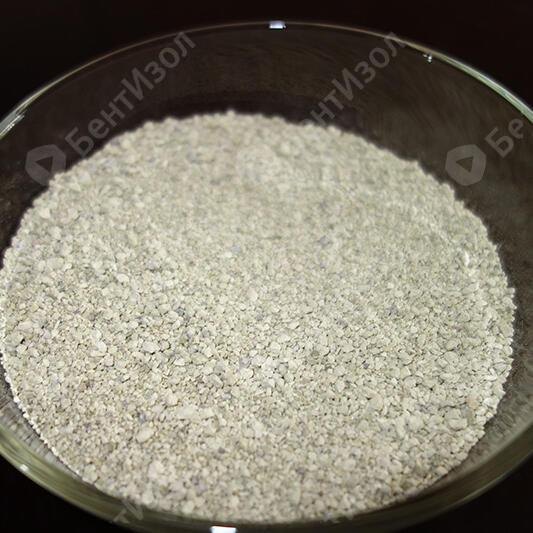

BentIzol bentonite granules — overlap sprinkling and bentonite paste
BentIzol granules and powder are an auxiliary material for bentonite mats: they are sprinkled into overlaps, technological openings and horizontal–vertical transitions, and mixed with water in a 1 : 3.5 ratio they make a paste for vertical overlaps, cracks and utility penetrations. BentoStandard is made from soda-activated clay of the Zyryanskoye deposit, BentoPremium from alkaline clay, and BentoProfis with special additives is chosen for aggressive media. Supplied in 50 kg bags or 900 kg MKR soft containers.
Specifications
| Manufacturer | BentIzol — OOO “BentIzol”, Vvedenskoye |
|---|---|
| Type | bentonite waterproofing |
| Use | foundations and basements, joints and junctions |
| Base | granulated bentonite and bentonite powder; BentoStandard — alkaline-earth clay from the Zyryanskoye deposit activated with soda ash; BentoProfis — with special additives for aggressive media |
| Packaging | bags of 50 kg or MKR soft containers of 900 kg |
| Application method | sprinkling of bentonite mat overlaps, technological openings and horizontal–vertical transitions; paste for vertical overlaps, cracks and utility penetrations — granules with water 1 : 3.5 |
| Key properties | free swell index at least 24 / 30 / 30 ml/2 g (Standard / Profis / Premium); fluid loss no more than 18 / 14 / 16 ml; cation exchange capacity at least 70 / — / 80 meq/100 g; moisture content no more than 12 %; granules 0.5–2.0 mm, powder 0–0.4 mm; bulk density no more than 1.2 g/cm³ |
| Consumption | about 0.5 kg per linear m of bentonite mat overlap |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
