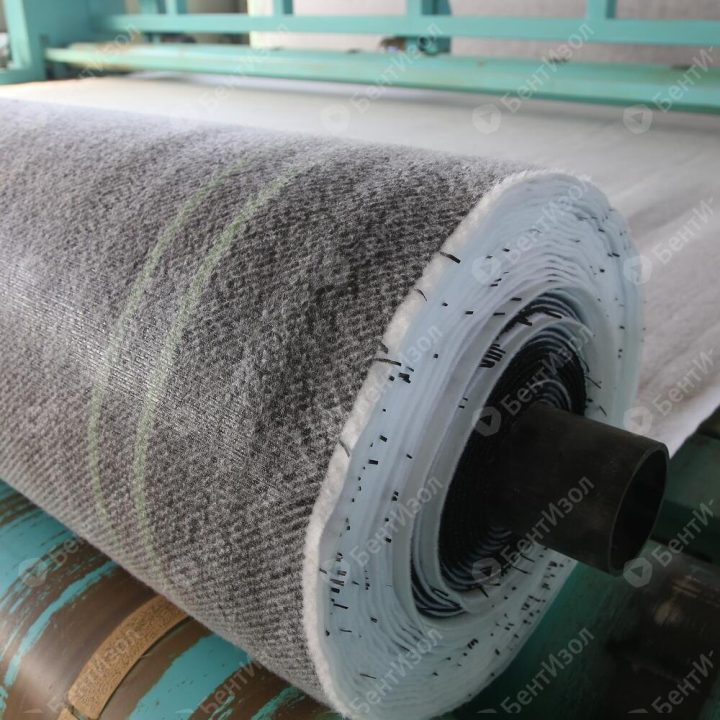

The laminated version of SAB 5 is supplemented with a polyethylene film, which faces the more aggressive side during installation. Thanks to the film, the mat is impermeable, resistant to media with pH from 1 to 13 and withstands static puncture of at least 2.2 kN. Inside is activated sodium bentonite in a needle-punched polypropylene carrier, a 5 × 40 m roll weighs 1,116 kg; applications include liners for landfills, oil and gas facilities, hydraulic structures and tailings storage facilities.
| Manufacturer | BentIzol — OOO “BentIzol”, Vvedenskoye |
|---|---|
| Type | bentonite waterproofing |
| Use | hydraulic structures and dams, tanks and pools |
| Base | geosynthetic roll material: needle-punched carrier of woven (160 µm) and nonwoven (200 µm) polypropylene with bentonite granules (activated sodium bentonite); laminated with 180 µm polyethylene film; polymer additives are not permitted |
| Packaging | roll 5 × 40 m, weight 1,116 kg; on a core in a sealed polyethylene film sleeve |
| Application method | compact the base or embankment and clear it of debris, stones and vegetation; unroll the roll with the “black side” down; longitudinal overlap at least 15 cm, transverse at least 30 cm, stagger transverse joints by at least 30 cm; spread bentonite granules evenly in the overlap, about 0.5 kg per linear m; protective cover layer at least 30 cm; laminated layer facing the more aggressive side, overlaps “mat to mat”, “film to film”; on slopes steeper than 1/4–1/5 (depending on soil type) — a cellular geogrid with anchors through the mat, sprinkle puncture points with granules; on vertical surfaces — construction stapler, fastening gun |
| Application temperature | installation in any season at any temperature |
| Key properties | bentonite content 5.0 kg/m²; mass per unit area 5,490 g/m²; permeability coefficient no more than — (impermeable) m/s; flux no more than — (impermeable) m³/m²·s; static puncture resistance at least 2.2 kN; tensile load at least 12 (longitudinal) / 7 (transverse) kN/m; tear strength at least 400 N/m; peel strength of the laminating layer at least 360 N/m; dynamic perforation (cone drop) no more than Ø10 mm; thickness at 2 kPa 6.7 mm; flexibility down to −70 °C without damage; resistance to aggressive media pH 1–13; withstands hydrostatic pressure up to 7 atm; service from −70 to +60 °C; self-healing of punctures and cuts; unlimited service life |
| Layer thickness | thickness at a pressure of 2 kPa 6.7 mm |
| Shelf life | recommended storage period no more than two years from the date of manufacture; in covered warehouses or under sheds, protected from moisture, sun, mechanical and chemical damage; no more than 5 rolls high |
| Standards | STO 87299967.003-2022 “Geosynthetic bentonite roll materials of the BentIzol® type. Specifications”; GOST R certificate of conformity; environmental compliance certificate; seismic resistance certificate; QMS GOST ISO 9001:2015; ITB certificate (Instytut Techniki Budowlanej, Poland); opinion of NIIES (RusHydro); opinion of the K.D. Pamfilov AKKh (Academy of Municipal Economy) |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.

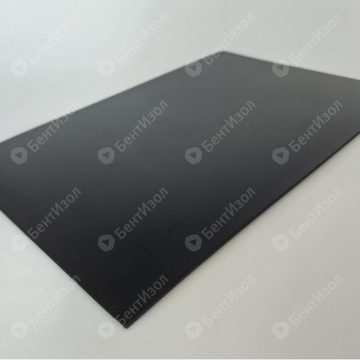

Smooth HDPE or LLDPE geomembrane for landfills, tailings storage facilities, canals and water bodies; chemical resistance pH 0.5–14, service life from 50 years.
Bentonite mats with a factory layer of bentonite powder along the longitudinal edges, whose overlaps need no sprinkling with granules.

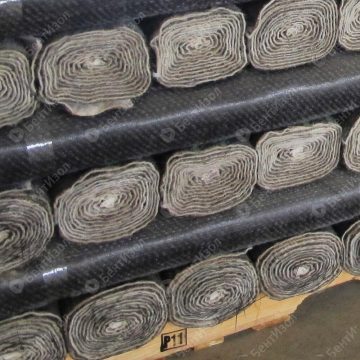

Bentonite mat with a polymer additive and a laminating film for foundations, tunnels and wells; withstands water pressure up to 7 atm.
