OGNEBARIER

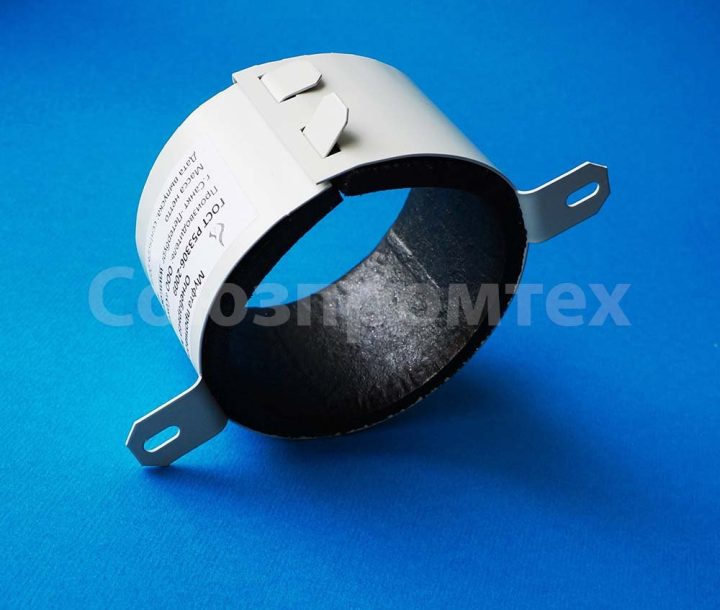

OGNEBARIER MP fire collar (MP-16 … MP-160)
Plastic pipes made of PVC, PE and PP are protected with the OGNEBARIER MP collar, rated EI 180, where they pass through separating structures. Inside the split metal body, which is painted against corrosion, there is an intumescent material with an expansion ratio of at least 900 %: in a fire the collar activates by itself and closes the opening. Thanks to the petal lock it can be fitted both to new pipes and to pipes that are already installed; the internal diameter ranges from 16 to 160 mm. The collar operates at temperatures from −50 to +85 °C, with a service life of 30 years.
Specifications
| Manufacturer | OGNEBARIER — OOO “Soyuzpromtekh”, St Petersburg |
|---|---|
| Fire protection performance | EI 180 (fire resistance rating 180 minutes) |
| Application | penetrations and joints |
| Service conditions | service temperature range from −50 to +85 °C; service life 30 years |
| Base | self-activating demountable collar: intumescent material (expansion ratio at least 900 %) in a split metal body with a petal lock, metal painted against corrosion |
| Packaging | internal diameter 16, 20, 25, 32, 40, 50, 65, 75, 80, 90, 110, 125, 160 mm; also MP-16/20 |
| Application method | fitted to plastic pipes (PVC, PE, PP) where they cross separating structures; split body — for new and already installed pipes |
| Shelf life | warranty 1 year from the date of purchase; service life 30 years; storage and transport from −50 to +80 °C |
| Standards | TU 28.29.23-001-33162798-21 “Fire collar OGNEBARIER MP”; TR EAEU 043/2017; EAEU certificate RU C-RU.PB58.V.00550/21 (from 10.12.2021 to 09.12.2026) |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
Other materials by OGNEBARIER
OGNEBARIER
OGNEBARIER MP intumescent tape-type fire collar (50, 125, 200 mm)
OGNEBARIER MP intumescent tape collar for fire-stop penetrations, sizes 50, 125 and 200 mm; specifications on request.
Price on request
OGNEBARIER
OGNEBARIER LTRU intumescent sealing tape for fire doors and hatches
Self-adhesive intumescent tape for fire doors, gates and hatches: starts to expand from +150 °C, service life at least 25 years.
Price on request
OGNEBARIER

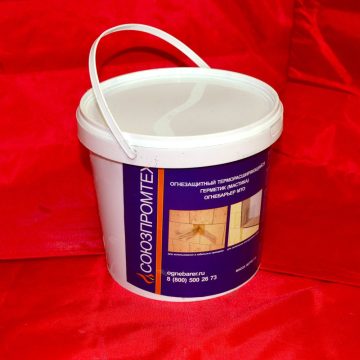

OGNEBARIER MTO fire-protective mastic (sealant)
