OGNEBARIER
OGNEBARIER LTRU intumescent sealing tape for fire doors and hatches
Self-adhesive intumescent tape for fire doors, gates and hatches: starts to expand from +150 °C, service life at least 25 years.
Price on request
OGNEBARIER

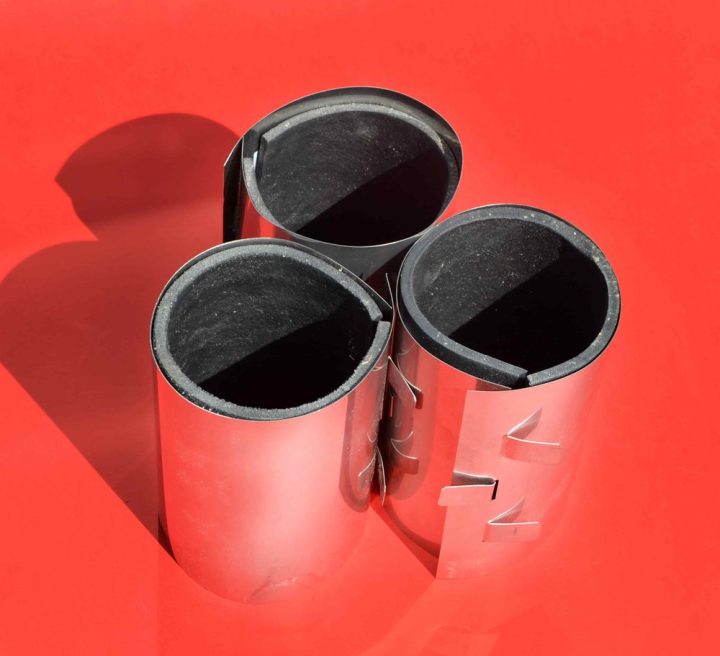

OGNEBARIER fire collar for floor slabs — stainless or galvanised steel body
This OGNEBARIER model is designed for pipelines passing through floor slabs and provides a fire resistance rating of EI 180. An intumescent material with an expansion ratio of at least 900 % is housed in a split body with a petal lock, so the collar can also be fitted to a pipe that is already installed. The body comes in two versions — stainless steel or galvanised steel. The collar is suitable for residential, public and industrial facilities, operates at temperatures from −50 to +85 °C and remains functional for 30 years or more.
Specifications
| Manufacturer | OGNEBARIER — OOO “Soyuzpromtekh”, St Petersburg |
|---|---|
| Fire protection performance | EI 180 (fire resistance rating 180 minutes) |
| Application | penetrations and joints |
| Service conditions | service temperature range from −50 to +85 °C; residential, public and industrial facilities; remains functional for 30 years or more |
| Base | intumescent material (expansion ratio at least 900 %) in a stainless steel or galvanised steel body; split body with a petal lock |
| Packaging | two body versions: stainless steel; galvanised steel |
| Application method | fitted to pipelines in floor slabs, incl. pipes already installed |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
Other materials by OGNEBARIER
OGNEBARIER
OGNEBARIER MTO fire-protective mastic (sealant)
Intumescent sealant for cable penetrations (EIT 120), joints and penetrations of pipes, trays and air ducts (EI 180); cartridge, 3 and 20 kg buckets.
Price on request
OGNEBARIER
OGNEBARIER MP intumescent tape-type fire collar (50, 125, 200 mm)
OGNEBARIER MP intumescent tape collar for fire-stop penetrations, sizes 50, 125 and 200 mm; specifications on request.
Price on request
OGNEBARIER
OGNEBARIER MP fire collar (MP-16 … MP-160)
Split self-activating collar for plastic pipes where they pass through separating structures, EI 180, diameters from 16 to 160 mm.
Price on request
