OGRAX

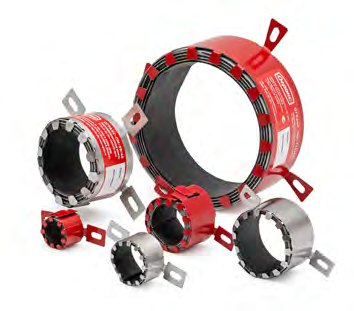

OGRAX-PM fire collars (16, 25, 32, 40, 50, 110)
Split steel collars with an intumescent insert for plastic sewer and water supply pipes; EI 180, diameters 16–110.
Price on request
OGRAX

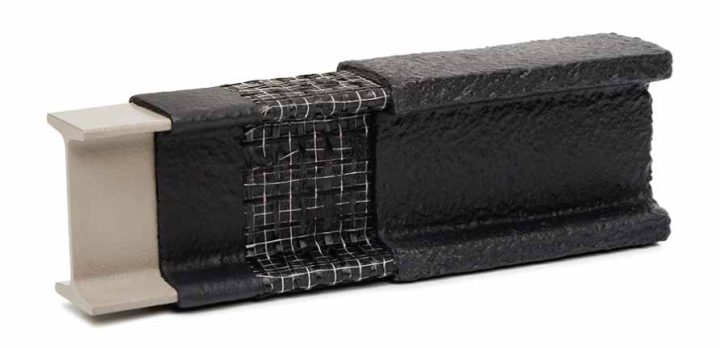

OGRAX-SKE UV fire protection coating for offshore facilities
OGRAX-SKE UV is a specialised passive fire protection material for sea-going ships, floating drilling units, fixed offshore platforms and floating oil and gas facilities. The coating is designed for hydrocarbon fire; for class A and H bulkheads and decks it holds a Type Approval Certificate from the Russian Maritime Register of Shipping. It is a two-component system: a dispersion on a hybrid binder and a blended hardener, applied over primer by spray or trowel. The service life of the coating is at least 20 years.
Specifications
| Manufacturer | OGRAX — GK Unihimtek, Moscow Region |
|---|---|
| Fire protection performance | hydrocarbon fire; class A and H bulkheads and decks (RS type approval) |
| Application | steel structures |
| Service conditions | sea-going ships, floating drilling units, fixed offshore platforms, floating oil and gas facilities |
| Base | two-component: dispersion on a hybrid binder + blended hardener; solids content of component 1 — 91±2% |
| Colour | grey |
| Application method | combined or airless spray, trowel; mixing ratio 9:1, pot life 1 h; over primer |
| Drying | between coats 1 day, full cure 4 days |
| Shelf life | 1 year |
| Standards | TU 5728-004-75250588-2015; Type Approval Certificate of the Russian Maritime Register of Shipping |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
Other materials by OGRAX
OGRAX
OGRAX-V-SK fire protection paint for steel and timber
Water-based intumescent paint for steel (R15–R90) and timber (fire protection performance group 1) in indoor spaces.
Price on request
OGRAX
OGRAX-M fire protection coating for cables
Weather-resistant solvent-based coating for fire protection of cables, including flood-prone ones; from −60 to +250 °C, GOST R 53311-2009.
Price on request
OGRAX
OGRAX-PPU spray-applied fire protection (polyurethane foam)
Two-component spray polyurethane foam for structural fire and cryogenic protection of steel structures; ratings of 60, 90, 120 and 150 minutes.
Price on request
OGRAX
OGRAX-VENT air duct fire protection system (OGRAX-BM + OGRAX-K adhesive)
Fire protection of air ducts with OGRAX-BM foil-faced basalt material on OGRAX-K adhesive; EI 60 and EI 90 ratings.
Price on request
OGRAX
OGRAX-SKE epoxy fire protection coating
Two-component epoxy fire protection coating for steel in aggressive environments and marine climates, R45–R120, hydrocarbon fire.
Price on request
