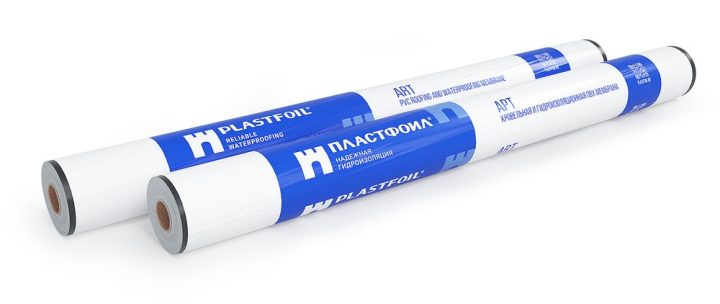

PLASTFOIL ART — unreinforced PVC membrane for roof details

PLASTFOIL ART, an unreinforced membrane welded by hand, is used for junctions with pipes, outlets and masts and for reinforcing elements on PVC roofs. Two layers of different colours, light grey on top and dark grey underneath, help to check the quality of welding. Elongation at break is 250%, nominal tensile strength is 15 MPa, flexibility is retained down to −40 °C, and on a bar R5 — down to −55 °C. It is supplied in rolls of 10 × 2.0 m.

Specifications

Manufacturer	PENOPLEX (PLASTFOIL, PLASTGUARD) — OOO “PENOPLEX SPb”, Kirishi
Type	roll materials and membranes
Use	roofs
Base	unreinforced two-layer membrane of plasticised PVC (light grey top, dark grey bottom — for weld quality control)
Packaging	rolls in polyethylene film on pallets
Application method	mechanical fastening: sheets overlapped over the fasteners, hot-air welding with automatic equipment, fastener spacing according to the wind load calculation; ballasted systems: loose laying with an 80 mm overlap and welding, fastening along the perimeter and at junctions; installation according to the “Guide to the use of PLASTFOIL PVC membrane in roofs”
Key properties	nominal tensile strength 15/15 MPa; elongation at break 250/250%; tear resistance at least 150 N; flexibility not higher than −40 °C, on a bar R5 not higher than −55 °C; water absorption not more than 0.1%; seam peel strength at least 300, shear strength at least 600 N/50 mm; watertightness 10 kPa for 24 h and 200 kPa for 2 h; impact strength 800/1000 mm; UV ageing at least 5000 h — complies; dimensional change at 80 °C not more than 1.5/1.5%; G4 V3 RP3
Layer thickness	1.5 mm
Standards	TU 23.99.12.110-012-54349294-2016; fire certificate V.00559-25 of 21.03.2025; voluntary certificates No. 76074 of 06.05.2025 and No. 109714 (GOST R 57417); expert opinion No. 000788 of 19.05.2022; QMS GOST R ISO 9001 No. 0111 of 28.12.2025; EPD R-N-00019 of 25.01.2023

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
