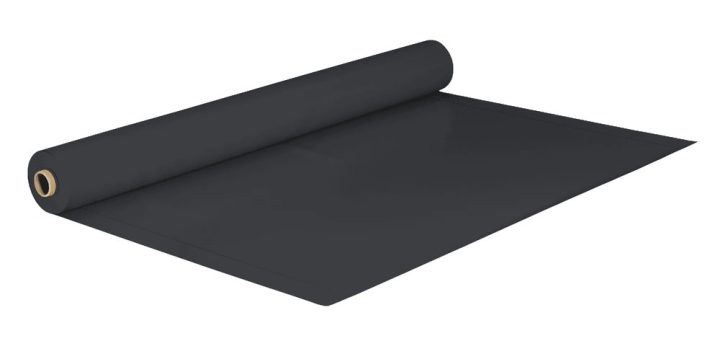

ECOBASE V-ST PVC waterproofing membrane — textured, for two-layer systems
TECHNONICOL

ECOBASE V-ST PVC waterproofing membrane — textured, for two-layer systems

Roll materials and membranes

ECOBASE V-ST serves as the second layer in two-layer PVC membrane waterproofing of underground structures. One of its sides has a textured surface of profiled studs or embossing, and the system itself allows leak-tightness to be monitored during construction and service. The membrane is made of extruded PVC without reinforcement, elongates by 200% ±20%, retains flexibility on a bar down to −40 °C and is absolutely watertight at a pressure of 1 MPa for 24 h. Rolls of 20 × 2.15 m are packed in opaque film.

Specifications

ManufacturerTECHNONICOL — OOO “Zavod Logicroof”, Ryazan
Typeroll materials and membranes
Usefoundations and basements
Baseunreinforced polymer membrane of extruded PVC with fillers and process additives; textured surface (profiled studs or embossing) on one side
Packagingrolls 20 m × 2.15 m, each in opaque polyethylene film, on wooden pallets
Application methodsecond waterproofing layer in two-layer PVC membrane systems for underground structures; allows leak-tightness to be monitored during construction and service
Key propertiesmaximum tensile force lengthwise at least 12 MPa, crosswise at least 10 MPa (GOST 31899-2-2011, method B); elongation 200% ±20%; flexibility temperature on a bar R = 5 mm not higher than −40 °C; nail-shank tear resistance at least 150 N; change in linear dimensions at 80 °C over 6 h not more than 2%; static puncture resistance at least 20 kg; welded seam peel strength at least 300 N/50 mm, tensile strength at least 600 N/50 mm; watertightness at 1 MPa for 24 h — absolute; impact resistance on a hard substrate at least 700 mm, on a soft substrate at least 1000 mm (GOST 31897-2011); water absorption not more than 0.2%
Layer thickness1.5 mm
Shelf life12 months from the date of manufacture; store rolls horizontally on a pallet, not more than 3 high, in the factory packaging, in a dry enclosed room or under a canopy
StandardsSTO 72746455-3.4.3-2015

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
