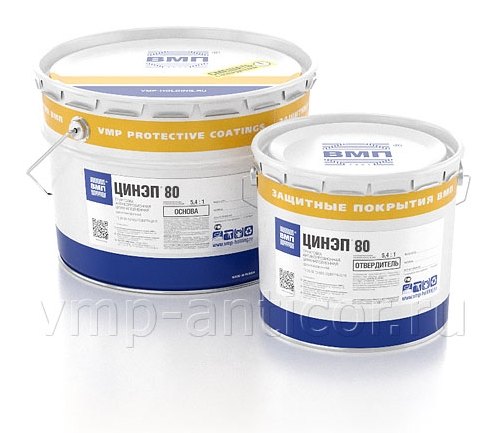

TSINEP 80 — epoxy zinc-rich primer, level 2 per SSPC Paint 20
VMP

TSINEP 80 — epoxy zinc-rich primer, level 2 per SSPC Paint 20

Zinc-rich primers

Unlike the basic TSINEP, this primer contains at least 80 % metallic zinc in the coating, which corresponds to level 2, type II per SSPC Paint 20. It is used only as a primer coat in systems for steel structures, bridges, chemical plants, marine and port structures. It is overcoated with IZOLEP-mio, POLITON-UR, POLITON-UR (UV), ALUMOTAN and epoxy, polyurethane and acrylic based enamels, and is suitable under PLAMCOR fire protection. The coating is resistant to fresh and sea water, salt solutions and petroleum products.

Specifications

ManufacturerVMP — AO “NPKh VMP”, Yekaterinburg
Typezinc-rich primers
Usesteel structures, bridges, chemical plants, marine and port structures
Baseepoxy resin with zinc powder, high solids content; two-pack, polyamide hardener
Colourgrey (shade not standardised), matt
Packagingbase — metal pails 10 l and cans 1 l; hardener — metal cans 3 l and 0.25 l
Application methodairless spray (nozzle 0.015–0.021″, 15–25 MPa), air spray, brush, roller (stripe coating); 1–2 coats; thinner SOLV-EP, 646, 647, 648 up to 5 % by weight; base:hardener 100:5.5 by weight, 6:1 by volume
Application temperatureair from 0 to +40 °C (down to −5 °C permitted), relative humidity max. 85 %; surface at least 3 °C above the dew point, not above +40 °C; material not below +15 °C
Dryingto degree 3 — 2 h at 20 °C; overcoating at 20 °C — not earlier than 4 h, maximum 1 year; before service in aggressive media — at least 7 days
Key propertiesmetallic zinc content of the coating — at least 80 % (SSPC Paint 20, level 2, type II), volume solids — 61 %, non-volatile matter by weight — 83–86 %, density — 2.45–2.65 g/cm³, adhesion (GOST 31149) — max. 1 point, heat resistance — 120 °C, pot life at 20 °C — at least 12 h, resistant to sea and fresh water, salt solutions, crude oil and petroleum products
Compatible materialstopcoats: IZOLEP-mio, POLITON-UR, POLITON-UR (UV), ALUMOTAN, epoxy, polyurethane, acrylic, vinyl-epoxy and chlorinated vinyl based enamels; primer under PLAMCOR fire protection
Shelf life18 months
StandardsTU 20.30.12-022-12288779-2018; SSPC Paint 20 (level 2, type II); conclusion of NPO “Lakokraspokrytie” (Khotkovo)

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
