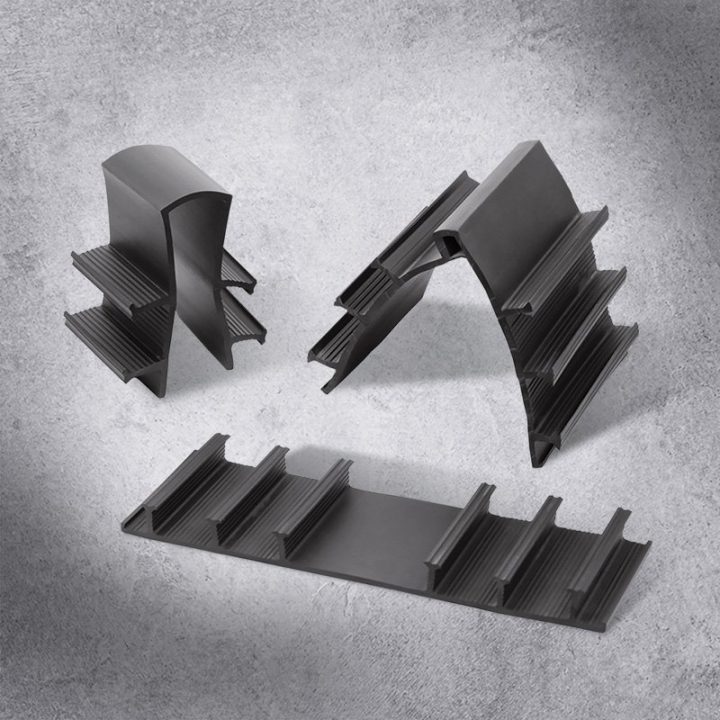

Ultraband waterstops — PVC profiles for expansion and construction joints
Kalmatron

Ultraband waterstops — PVC profiles for expansion and construction joints

Waterstops and swelling profiles

The Ultraband range covers internal and external waterstops made of plasticised PVC: types DV and DO for expansion joints, KhV, KhVS, KhO and KhOM for construction joints, and protective U-shaped DZ. The size is selected according to DIN V 18541 taking into account water pressure and total deformation; joints are welded with a jig or a thermal knife. The material has an elongation at break of at least 300% and works from −25 to +80 °C, and profiles KhV-320 and DV-320/20 are designed for a water pressure of 0.8 MPa.

Specifications

ManufacturerKalmatron — OOO “Kalmatron-SPb”, Saint Petersburg
Typewaterstops and swelling profiles
Usejoints and abutments, foundations and basements
Baseextruded elastomer based on plasticised PVC (PVC-P)
Application methodfor expansion and construction joints of underground and buried structures; types: DV — internal for expansion joints, DO — external for expansion joints, DZ — protective U-shaped, KhV — internal for construction joints, KhVS — internal with fixings, KhO/KhOM — external for construction joints; the size is selected according to DIN V 18541 (water pressure and total deformation); internal waterstops are tied to the reinforcement with binding wire at ~50 cm spacing, external ones are nailed to the formwork; external ones — only on the water-pressure side; joints are welded with a jig or thermal knife at 185–195 °C; at sub-zero temperatures keep for at least 12 h at not below +5 °C
Key propertiesPVC-P material: Shore A hardness 70±5; density 1.3; tensile strength at least 10 N/mm²; elongation at break at least 300%; service temperature −25…+80 °C; brittleness temperature −25 °C; linear deviation ±0.7%; coefficient of linear expansion 15–17×10⁻⁵ K⁻¹; fire resistance V2; welding temperature 180 °C. Water pressure by size: KhV-150/200 — 0.6 MPa, KhV-240 — 0.65 MPa, KhV-320 — 0.8 MPa; DV-240/20 — 0.6 MPa, DV-320/20 and DV-320/50 — 0.8 MPa; KhO-240/25, KhO-250/20 — 0.30 MPa
Layer thicknesssizes: KhV-150, KhV-200, KhV-240, KhV-320; KhVS-125, KhVS-150; DV-240/20, DV-320/20, DV-320/50; DO-240/20, DO-320/30, DO-320/50; DZ-55/20/30, DZ-90/20/35, DZ-130/20/35, DZ-140/50/40; KhO-240/25, KhO-250/20, KhO-320/35; KhOM 250/19.5, KhOM 250/20, KhOM 310/20, KhOM 310/22
Shelf lifestore in closed rooms at a temperature not above +30 °C, without deforming loads, sun, petroleum products and solvents
StandardsTU 5775-015-54282519-2015 (certificate of conformity ROSS RU.YA2331.04PVK0.N01904, 30.05.2024–29.05.2027); size selection per DIN V 18541

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
