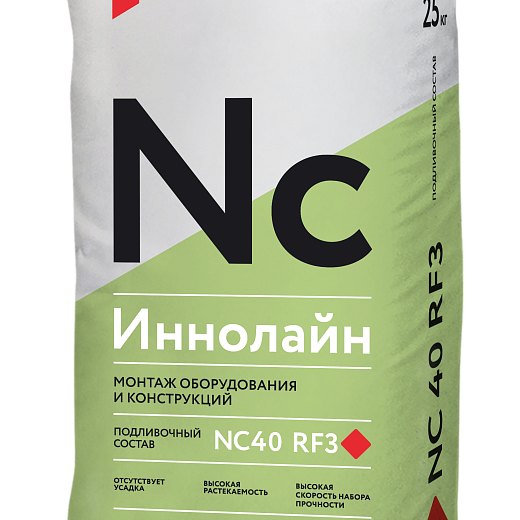

Innolayn NC40 RF3 — R4 grout for work at −25…−10 °C
INDASTRO

Innolayn NC40 RF3 — R4 grout for work at −25…−10 °C

Cementitious grouts

Sub-zero temperatures from −25 to −10 °C are the working range of the Innolayn NC40 RF3 grout, class R4. At −25 °C it reaches at least 15 MPa in compression after 6 hours, 25 MPa after 24 hours and 50 MPa by 28 days. The grout is used for installation of industrial equipment, grouting under column bases, monolithic joining of joints, installation of anchors and repair of concrete by pouring; for the first 24 hours it is protected from draughts and cooling with thermal insulation mats.

Specifications

ManufacturerINDASTRO — OOO Sedrus
Typecementitious grouts
Useequipment foundations, anchoring of rebar and bolts, columns and beams
BasePortland cement, special cements, mineral filler, modifying admixtures
Packagingbags 25 kg
Application methodInnolayn NC40 RF3 grout is used for high-precision installation of industrial equipment, grouting under column bases, repair and restoration of concrete and reinforced concrete by pouring, monolithic joining of joints in reinforced concrete structures and installation of anchors at sub-zero temperatures.
Application temperature−25…−10 °C
Curingprotection against draughts and cooling for 24 h (thermal insulation mats)
Key propertiesmixing water: 2.7-3.3; maximum aggregate size, mm: 3; workability (cone spread): 290 – 350 mm; workability retention: 10-15 min; effective contact area: ≥80 %; flexural strength at 24 h: ≥3 MPa; flexural strength at 28 days: ≥5 MPa; compressive strength at 6 h (at -25 °C): ≥15 MPa; compressive strength at 24 h: ≥25 MPa; compressive strength at 28 days: ≥50 MPa; bond strength to substrate: ≥2 MPa; linear expansion/shrinkage: ≤0.8 mm/m; service in aggressive environments: 5< pH <14; frost resistance: F1 1000; frost resistance (road and airfield concrete, mineralised medium): F2 300; water impermeability: W16; service temperature: -60…+80 °C
Shelf life6 months in paper packaging, 12 months in plastic packaging from the date of manufacture, in a dry room
Standardsclass R4

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
