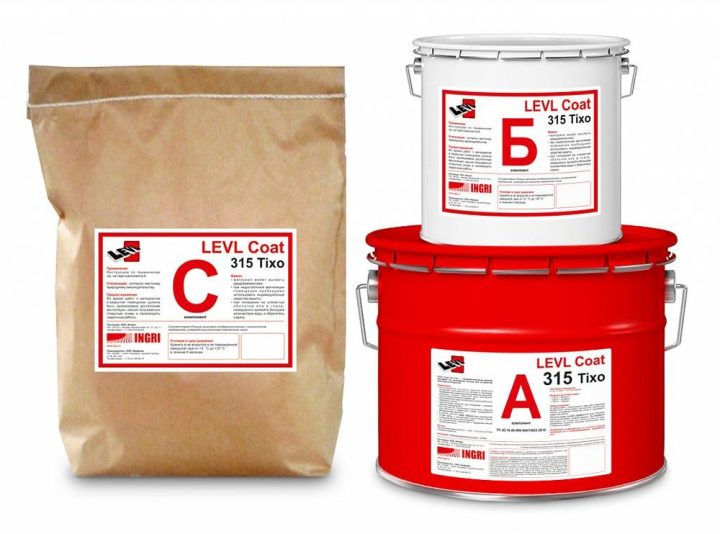

LEVL Coat 315 TIXO — textured non-slip epoxy coating
LEVL (INGRI)

LEVL Coat 315 TIXO — textured non-slip epoxy coating

Epoxy floors

A relief non-slip surface is produced by LEVL Coat 315 TIXO three-component epoxy compound. It is spread with a fine-notched trowel and the texture is then formed with a wool roller; the pattern can still be corrected for 15 minutes. The coating is designed for moderate wear loads: Shore D hardness at least 70, Taber abrasion up to 80 mg, service from −10 to +60 °C. It suits warehouses, workshops, covered car parks, rooms with a “wet cycle”, schools, kindergartens and healthcare facilities.

Specifications

ManufacturerLEVL (INGRI) — OOO “Ingri”, Saint Petersburg
Typeepoxy floors
Usewarehouses and logistics, production workshops, car parks and ramps, wet rooms, retail and public buildings, food and pharmaceutical
Baseepoxy resin, three-component (A+B+C, C is the filler)
ColourRAL colours; textured relief finish
Packagingkit (A+B+C) 11 kg: A — 10 l metal pail 8.23 kg; B — 3 l pail 1.77 kg; C — 1 kg bag; A : B : C = 4.65 : 1 : 0.57 (by weight)
Application methodtextured (relief, non-slip) thin-layer coating for concrete and cementitious substrates with moderate wear loads: fine-notched trowel (A2) as a scrape coat, then a wool roller with a pile of at least 10 mm; the texture can be adjusted for 15 min; over LEVL Coat 101/103 or 106M primer; a UV-resistant finish is possible
Application temperatureair and substrate +15…+30 °C; components at least +15 °C (recommended +18…+25 °C); air humidity no more than 80 %; substrate moisture no more than 5.0 % by weight (primer 101/103) or 10.0 % by weight (106M); 3 °C above the dew point
Curinglight loads: +10 °C 32 h, +20 °C 16 h, +30 °C 12 h; foot traffic: 6 / 3 / 2 days; full loads: 10 / 7 / 5 days; next coat after 12–48 h at 20 °C
Key propertiesShore D hardness (7 days) at least 70; Taber abrasion resistance (CS10/1000 g/1000 rev.) no more than 80 mg; adhesion (over LC 101 primer) at least 2.5 MPa (failure in the concrete); density of the A+B+C mix 1.3 ± 0.05 g/cm³; non-volatile content at least 95 %; resistance to process water, temperature changes and bacteriological attack; pot life +10 °C 60 min, +20 °C 30 min, +30 °C 15 min; service temperature from −10 to +60 °C; chemical resistance: on request
Layer thicknessadmissible application thickness 0.5 mm (in the systems table: “textured coating 0.65 mm thick”)
Consumption(A+B+C): 0.65 kg/m² per 0.5 mm of coating thickness; do not exceed 0.65 kg/m²
Shelf life6 months from the date of manufacture; storage at +5…+25 °C
StandardsTU 20.16.40-066-94613022-2019; substrate per SP 71.13330.2017 (cl. 8.12.2, Table 8.11); test methods GOST 31992.1, GOST R 31939, GOST 28574, GOST 24621

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
