TSINEP — two-component epoxy zinc-rich primer
VMP

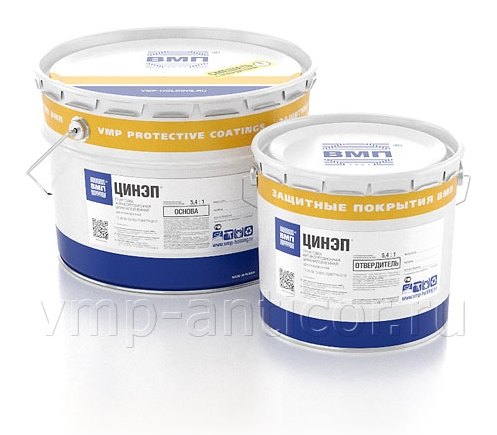

TSINEP — two-component epoxy zinc-rich primer

Zinc-rich primers

TSINEP is a two-pack epoxy primer with a polyamide hardener; the coating contains at least 89 % metallic zinc (level 1, type II per SSPC Paint 20). It is recommended for highly aggressive industrial environments: steel structures, bridges, oil and gas, power and chemical facilities, marine and port structures. It serves as the primer in systems with IZOLEP-mio, POLITON-UR, ALUMOTAN and under PLAMCOR fire protection; there are certificates for systems with PLAMCOR-2 and PLAMCOR-3. The coating is resistant to sea water, crude oil and petroleum products.

Specifications

ManufacturerVMP — AO “NPKh VMP”, Yekaterinburg
Typezinc-rich primers
Usesteel structures, bridges, oil and gas, power industry, chemical plants, marine and port structures
Baseepoxy resin with zinc powder, high solids content; two-pack, polyamide hardener
Colourgrey (shade not standardised), matt
Packagingbase — metal pails 10 l and cans 1 l; hardener — metal pails 3 l and cans 0.25 l
Application methodairless spray (nozzle 0.015–0.021″, 15–25 MPa), air spray, brush, roller (stripe coating); 1–2 coats; thinner SOLV-EP, 646, 647, 648 up to 5 % by weight; base:hardener 100:5.5 by weight, 5.4:1 by volume
Application temperatureair from 0 to +40 °C (down to −5 °C permitted), relative humidity max. 85 %; surface at least 3 °C above the dew point, not above +40 °C; material not below +15 °C
Dryingto degree 3 — 2 h at 20 °C; overcoating at 20 °C — not earlier than 4 h, maximum 1 year; before stacking and shipment — at least 24 h; before service in aggressive media — at least 7 days
Key propertiesmetallic zinc content of the coating — at least 89 % (SSPC Paint 20, level 1, type II), volume solids — 58±2 %, non-volatile matter by weight — 84–87 %, density — 2.80 g/cm³, adhesion (GOST 31149) — max. 1 point, heat resistance — 120 °C, pot life at 20 °C — at least 12 h, service in all macroclimatic regions (from −60 °C); resistant to sea and fresh water, salt solutions, crude oil and petroleum products
Compatible materialstopcoats: IZOLEP-mio, POLITON-UR (UV), POLITON-UR, VINIKOR-62 grade A, ALUMOTAN, epoxy, polyurethane, vinyl-epoxy and chlorinated vinyl based enamels; primer under PLAMCOR fire protection
Shelf life18 months
StandardsTU 20.30.12-022-12288779-2018; SSPC Paint 20 (level 1, type II); GOST 9.401-2018; RD GM-02-18 (Trust “Gidromontazh”); STO-01393674-007-2022 (TsNIITS); STO 12288779-001-2020 (SC Avtodor); JSC RZD accreditation, regulation 12288779.02073.00160 for railway bridges; complies with the normative documents (ND) of Gazprom (offshore structures), Rosneft, Lukoil; recommendations of JSC NIKIMT-Atomstroy for nuclear power plants; certificates for systems with PLAMCOR-2, PLAMCOR-3

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
