CarbonWrap® Putty W two-component epoxy putty — for work at +5…+23 °C
CarbonWrap

CarbonWrap® Putty W two-component epoxy putty — for work at +5…+23 °C

Composite strengthening

For work at low temperatures the CarbonWrap system provides Putty W, which is applied at air temperatures from +5 to +23 °C. It is used to level and prepare the surface before priming or installing the external reinforcement system, to repair small defects and cracks and to install carbon rods — on horizontal, vertical and overhead surfaces. The component ratio is 100:25 by weight, the pot life at 20 °C at least 50 min, and the bond to concrete exceeds 2.5 MPa.

Specifications

ManufacturerCarbonWrap — OOO “Nanotekhnologicheskiy tsentr kompozitov”, Moscow
Typecomposite strengthening
Basetwo-component epoxy putty paste: component A — thixotropic blend of epoxy resins, reactive diluents, fillers, pigments and functional additives; component B — polyamine hardener with filler and special additives; solvent-free
Colourcomponent A — grey; component B — white; mix — grey

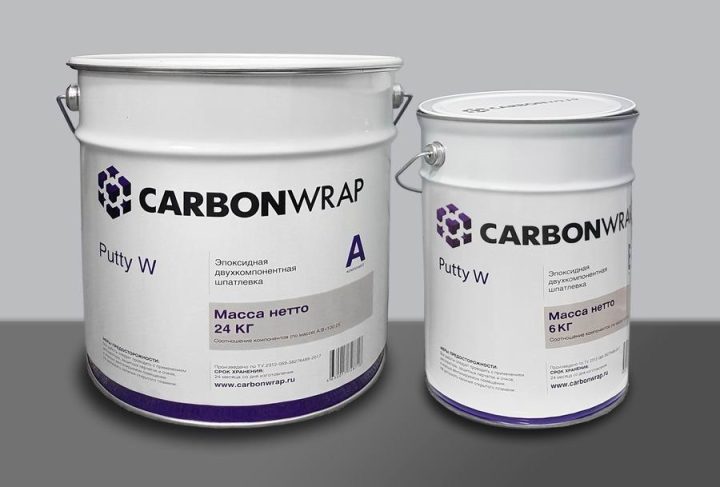

Packagingcomponent A — 24 kg pails, component B — 6 kg pails
Application methodlevelling and surface preparation before priming or installing the external reinforcement system, repair of small defects, crack repair, installation of carbon rods (composite rebar); for horizontal, vertical and overhead surfaces; no separate primer required; A:B = 100:25 by weight; mixing with a low-speed mixer at 300–400 rpm with a paddle for 3 min, especially at the bottom and walls, until uniformly grey, then 1 min at low speed to reduce air entrainment; applied with a spatula
Application temperatureair +5…+23 °C; relative humidity no more than 80 %
Key propertiesdynamic viscosity, Brookfield RVT at 25 °C, 2 rpm: A (N=7) 1500–2500, B (N=7) 120–250 Pa·s; mix density at 20 °C no more than 2.5 g/cm3; pot life at 20 °C at least 50 min; bond strength (adhesion) > 2.5 MPa (failure in the concrete); shear strength (7 days at 23 °C) at least 12 MPa
Shelf life24 months from the date of manufacture; in intact factory packaging in warehouses at +5…+30 °C; do not stack pallets with components on top of each other
StandardsTU 2312-069-38276489-2017 (20.30.22-069-38276489-2017)

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
