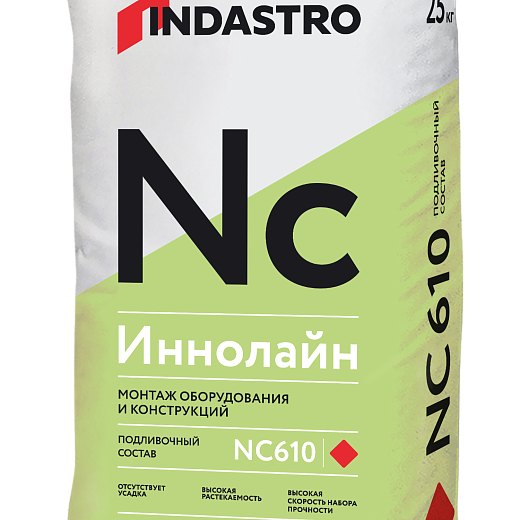

Innolayn NC610 — high-strength cementitious grout with water impermeability W20
INDASTRO

Innolayn NC610 — high-strength cementitious grout with water impermeability W20

If a grout needs a margin of strength and water impermeability, Innolayn NC610 is chosen: by 28 days it reaches at least 70 MPa in compression and 9 MPa in flexure, and its grades are W20 and F2 400. The grout is used for high-precision installation of industrial equipment, grouting under column bases, monolithic joining of joints in reinforced concrete structures, installation of anchors and repair of concrete by pouring. The mix retains workability for at least 45 minutes, effective contact area from 85 %.

Specifications

ManufacturerINDASTRO — OOO Sedrus, Nevinnomyssk
Typecementitious grouts
Useequipment foundations, anchoring of rebar and bolts, columns and beams
BasePortland cement, mineral filler, modifying admixtures.
Packagingbags 25 kg
Application methodInnolayn NC610 grout is used for high-precision installation of industrial equipment, grouting under column bases, repair and restoration of concrete and reinforced concrete by pouring, monolithic joining of joints in reinforced concrete structures and installation of anchors.
Application temperature+5…+30 °C
Curingprotection against moisture loss for at least 24 h (water spraying or wet hessian)
Key propertiesmixing water: 3.5-4; maximum aggregate size, mm: 3; workability (cone spread): 290 – 350 mm; workability retention: ≥45 min; effective contact area: ≥85 %; flexural strength at 24 h: ≥5 MPa; flexural strength at 28 days: ≥9 MPa; compressive strength at 24 h: ≥35 MPa; compressive strength at 28 days: ≥70 MPa; bond strength to substrate: ≥2 MPa; linear expansion/shrinkage: ≤0.8 mm/m; restrained expansion: ≤0.95 mm/m; service in aggressive environments: 5< pH <14; sulphate resistance coefficient (365 days): 0.9; frost resistance: F1 1000; frost resistance (road and airfield concrete, mineralised medium): F2 400; water impermeability: W20; service temperature: -60…+80 °C
Shelf life24 months in plastic packaging from the date of manufacture, in a dry room

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
