Kristallizol W12 — penetrating plaster-type waterproofing
Kristallizol

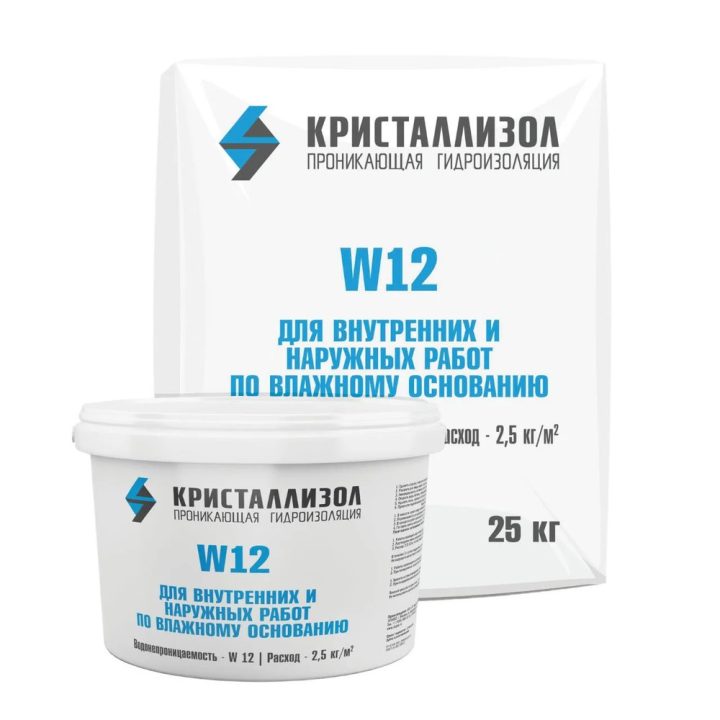

Kristallizol W12 — penetrating plaster-type waterproofing

Penetrating waterproofing

Kristallizol W12 is a dry mix of Portland cement, quartz sand and active additives, applied with a spatula in one pass as a penetrating plaster-type waterproofing. The compound protects concrete, stone and brick structures of underground facilities from inside and outside: foundations and basements below groundwater level, tanks, pools, hydraulic structures and overpasses. It is applied to a damp substrate, even with slight water seepage, and the coating withstands 1.2 MPa (W12). The material is also used to restore damaged concrete and masonry.

Specifications

ManufacturerKristallizol — OOO “PK GidroStroyKomplekt”, Mikhaylov
Typepenetrating waterproofing
Usefoundations and basements, tanks and pools, hydraulic structures and dams, bridge structures, tunnels and metro, leak repair
Basedry mix of Portland cement, graded quartz sand and chemically active additives; penetrating plaster-type waterproofing material
Packaging25 kg bag, 15 kg bucket
Application method25 kg of mix to 5 l of water (200 ml per 1 kg), mix with a mixer at 300–400 rpm or by hand for 5–10 min to a sour-cream consistency, remix in case of false set; apply with a spatula in one pass in a layer of up to 3 mm onto the prepared damp substrate; mechanised application is permitted; use the mixed material within 60 min; preparation: remove finishes and cement laitance mechanically (wire brushes, milling cutters) or chemically (Kristallizol KHIMFREZ, after 1 h — Kristallizol AKTIV); chase out joints, cracks, junctions and utility penetrations with a U-shaped 20×20 mm chase (FBS block joints 40×40 mm, brick masonry 10×10 mm); saturate the structure with water until fully saturated (up to 5 l/m²), the substrate damp but not wet; work from top to bottom: ceiling — walls — floor; care: keep the surface moist for 3 days, protect from mechanical impact, rain, sun and temperatures below +5 °C; finishing work not earlier than after 14 days
Application temperaturefrom +5 °C
Key propertieswater-tightness 1.2 MPa (12 atm), watertight under hydrostatic pressure W12; pull-off strength at 28 days 4.6 MPa; compressive strength at 28 days 31.1 MPa; frost resistance at least 300 cycles; chemical resistance coefficient in acidic / alkaline / saline media 0.958 / 0.967 / 0.935 (highly resistant); applied to a damp substrate, incl. with slight water seepage
Layer thickness3 mm layer in one pass
Consumption2.5–3 kg/m² (depending on the surface condition)
Shelf life12 months from the date of manufacture in intact sealed factory packaging; storage in unheated closed warehouses is permitted
StandardsGOST R 56703-2015; TU 5745-001-38213907-11; declaration of conformity ROSS RU D-RU.AZh40.V.01022/20 of 08.04.2020, valid until 07.04.2030 (according to GOST R 56703-2015; W12, W12-Kistevoy, Remontny, Monolit, Elast)

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
