This finely dispersed non-shrink mix with aggregate of only 0.2 mm and Rk7 workability was created for thin-layer structural repair of concrete and reinforced concrete. It eliminates local spalls, gouges, cavities and delaminations on floors, road and airfield pavements, bridges and equipment foundations. Class R4, 28.0 MPa after 24 h, 60.0 MPa in compression after 28 days (B50), F1 400; 2 days of moist curing are required after placing.
| Manufacturer | Pakol — OOO “NPO Pakol”, Vysokaya Gora |
|---|---|
| Type | flowable repair mortars |
| Use | floors, roads and airfields, bridges and overpasses, equipment foundations |
| Base | Dry construction mix, finely dispersed, non-shrink, flowable type, on a cement binder |

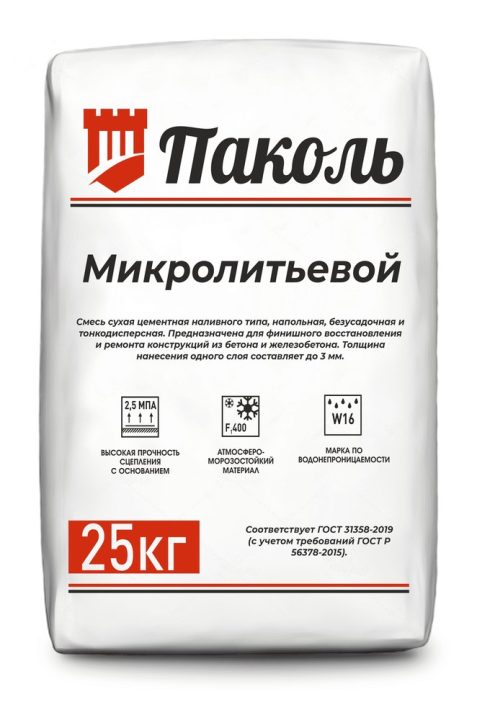

| Packaging | 25 kg bags (three-ply with a polyethylene liner) |
| Application method | For thin-layer structural repair of concrete and reinforced concrete structures by eliminating local damage (spalls, gouges, cavities, delaminations, etc.) up to 3 mm deep on horizontal and inclined (not more than 10°) surfaces |
| Application temperature | optimum +18…+30 °C; permitted from +5 °C |
| Curing | moist curing for 2 days (covering with film, spraying with water) |
| Key properties | aggregate size, mm: 0.2; mixing water, l per 1 kg: 0.22…0.26; workability: (Rk7) over 30; bond strength to substrate, MPa: 2.5; shrinkage strain: 1.0 (0.10); strength after 24 h: flexural 5.0 / compressive 28.0 MPa; strength after 28 days: flexural 7.0 (Btb5.2) / compressive 60.0 (B50) MPa; modulus of elasticity, GPa: 18.0; sulphate resistance group: III; frost resistance: F1 400, F2 150; watertightness: W16 |
| Shelf life | 12 months from the date of manufacture; storage at -30…+50 °C, humidity no more than 70 % |
| Standards | Rk7, B50, Btb5.2, W16, F1 400 to GOST 31358-2019 (taking into account the requirements of GOST R 56378-2015, class R4); TU 23.64.10-008-76310469-2021 |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
