REKS
REKS® Fiks Epo Tiks O — epoxy chemical anchor in a 380 ml cartridge
Modified epoxy chemical anchor for rebar, studs and embedded parts in concrete, stone and brick; 380 ml coaxial cartridge.
Price on request
REKS

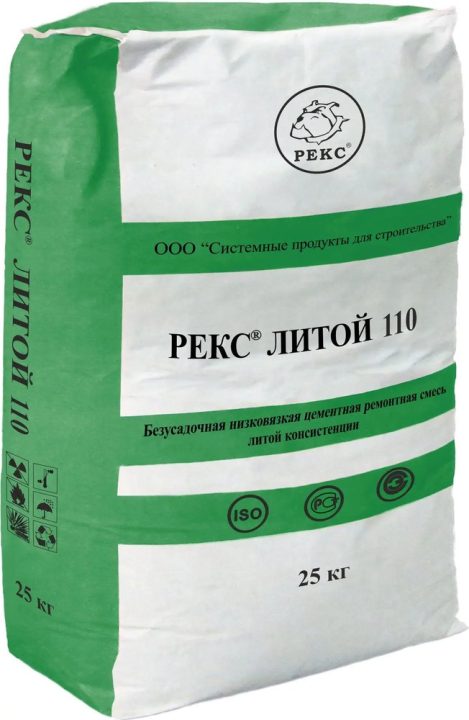

REKS® Litoy 110 — 110 MPa installation grout for wind turbine towers and equipment
REKS® Litoy 110 is intended for installing wind turbine towers and for grouting under bearings and spans of bridges, columns and foundations of turbines, generators, machine tools and rolling mills. It is a high-strength non-shrink rapid-hardening installation mortar based on Portland cement with shrinkage compensators; it is also used to fix anchor bolts, and workability is retained for at least 120 minutes. Compressive strength is at least 50 MPa after one day, 80 MPa after 7 days and 110 MPa after 28 days, modulus of elasticity from 40 GPa, class R4 per GOST R 56378.
Specifications
| Manufacturer | REKS — OOO “SPS” |
|---|---|
| Type | cementitious grouts |
| Use | equipment foundations, bridges and overpasses, columns and beams, anchoring of rebar and bolts |
| Base | high-strength non-shrink rapid-hardening installation grout based on Portland cement with shrinkage compensators |
| Colour | grey |
| Packaging | bag 25 kg |
| Application method | installation of wind turbine towers; grouting under bearings and spans of bridges, columns, foundations of industrial equipment (turbines, generators, machine tools, rolling mills); filling voids of 25–300 mm under the support flange; fixing of anchor bolts |
| Application temperature | +5…+35 °C |
| Curing | in hot and windy weather — water spraying and covering with film, in cold weather — covering with thermal insulation |
| Key properties | mixing water: 2.4–2.6 l per 25 kg; aggregate size: 2.5 mm; workability retention: ≥120 min; entrained air: ≤4 %; compressive strength at 1 / 7 / 28 days: ≥50 / ≥80 / ≥110 MPa; flexural tensile strength at 1 / 7 / 28 days: ≥5 / ≥8 / ≥13 MPa; bond to substrate at 28 days: ≥2.1 MPa (after 50 cycles in salts ≥2.0 MPa); modulus of elasticity: ≥40 GPa; density: 2.4 ± 5 % t/m³; freeze-thaw resistance: F2 400; water impermeability: W16; capillary water absorption: ≤0.4 kg/(m²·min^0.5) |
| Shelf life | 12 months from the date of manufacture |
| Standards | class R4 per GOST R 56378 |
Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
Other materials by REKS
REKS
REKS® Litoy — pourable R4 grout for bridge bearings and equipment
Low-viscosity non-shrink cementitious mix for high-precision grouting under columns, bridge spans and equipment foundations; 80 MPa at 28 days.
Price on request
REKS
REKS® Graut M — flowable non-shrink R4 grout for machine bases and anchors
Non-shrink highly flowable cementitious mix for grouting machine bases, fixing beams and columns and setting anchors; 60 MPa at 28 days.
Price on request
REKS
REKS® Strukto 100 — thixotropic R4 repair mortar resistant to acidic media
Non-shrink fibre-reinforced R4 mortar for bridges, tunnels, dams and treatment plants, tested for resistance in liquid acidic aggressive media.
Price on request
REKS
REKS® Fiks Epo T/VN — filled epoxy grout in three consistencies
Three-component modified epoxy grout for base plates, bridges, rails and anchoring; the consistency is set by the proportion of filler.
Price on request
REKS
REKS® AR — thixotropic R4 repair mortar for spraying and trowel application
Non-shrink fibre-reinforced R4 mortar in 25 kg bags for repairing bridges, tunnels, dams and columns; compressive strength from 55 MPa at 28 days.
Price on request
