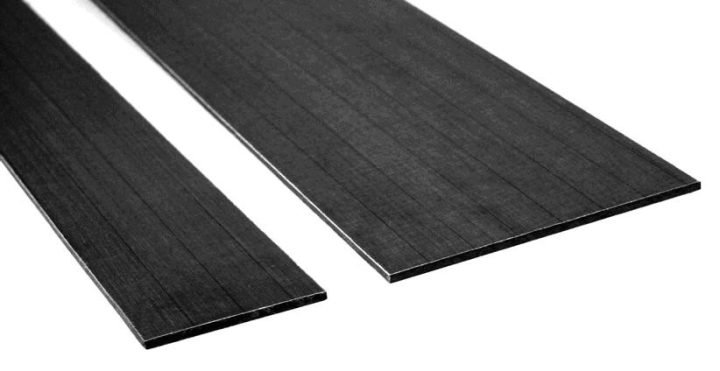

CarbonWrap® Lamel HS-14 CFRP laminate (14/50, 14/100, 14/120) — three widths
CarbonWrap

CarbonWrap® Lamel HS-14 CFRP laminate (14/50, 14/100, 14/120) — three widths

Composite strengthening

CarbonWrap Lamel HS-14 is produced in three sizes: 50, 100 and 120 mm wide with cross-sections of 70, 140 and 168 mm² respectively, in rolls of 100 linear m. The plate of carbon fibres in an epoxy matrix (fibre content more than 65 %, tensile strength more than 3500 MPa) is cleaned with acetone and installed with CarbonWrap Resin Laminate+ adhesive. The laminate is part of the CarbonWrap external reinforcement system and is used on beams, bridge and industrial structures, and for the 120 mm width the manufacturer also names columns.

Specifications

ManufacturerCarbonWrap — OOO “Nanotekhnologicheskiy tsentr kompozitov”, Moscow
Typecomposite strengthening
Useindustrial buildings, bridges and overpasses, columns and beams
Baseplate of high-strength carbon fibres in an epoxy matrix
Packaginglaminates 1.4 × 50 mm (cross-section 70 mm2), 1.4 × 100 mm (140 mm2), 1.4 × 120 mm (168 mm2), rolls of 100 linear m
Application methodsubstrate sound, prepared by abrasive methods, free of defects, protrusions and voids, dust-free, dry; lay the laminates out on a clean table, clean them with acetone or a suitable solvent, wait at least 30 min for the solvent to evaporate; the laminate is placed within the pot life of the adhesive and pressed on with a rubber roller, excess adhesive is removed
Key propertiesfibre type — high-strength carbon; epoxy matrix; fibre volume content > 65 %; tensile strength > 3500 MPa; modulus of elasticity > 170 GPa; width 50, 100 or 120 mm; cross-section 70, 140 or 168 mm2
Shelf life1 year from the date of manufacture; in closed packaging, in a dry room at +5…+25 °C
StandardsTU 22.21.42-044-38276489-2017 (TU 2256-044-38276489-2017)

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
