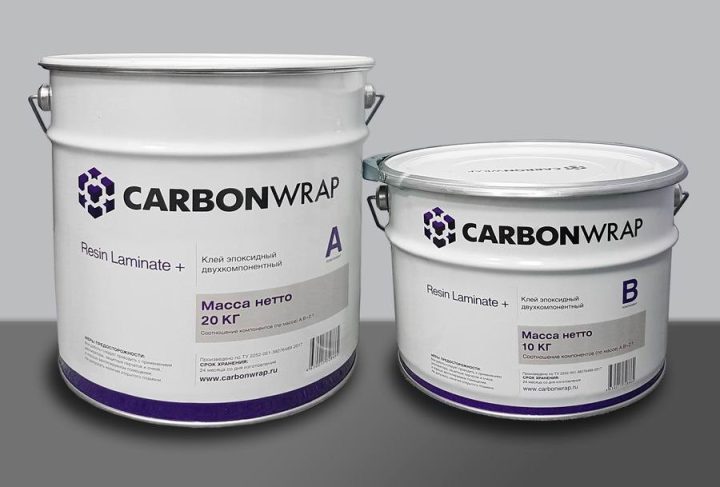

CarbonWrap® Resin Laminate+ two-component epoxy adhesive — for laminates and plates
CarbonWrap

CarbonWrap® Resin Laminate+ two-component epoxy adhesive — for laminates and plates

Composite strengthening

In the external reinforcement system, CarbonWrap Resin Laminate+ adhesive paste is used to bond CFRP laminates and steel plates, as well as to repair small defects and level the substrate before installation, to repair cracks and to install carbon rods. White component A and black component B are mixed at a ratio of 2:1 by weight to a uniform grey colour and applied with a spatula; no separate primer is required. The pot life is at least 60 min at 20 °C, the bond to concrete more than 2.5 MPa and the shear strength at least 12 MPa.

Specifications

ManufacturerCarbonWrap — OOO “Nanotekhnologicheskiy tsentr kompozitov”, Moscow
Typecomposite strengthening
Basetwo-component epoxy adhesive paste: component A — thixotropic blend of epoxy resins, reactive diluents, fillers, pigments and functional additives; component B — polyamine hardener with filler and special additives; solvent-free
Colourcomponent A — white; component B — black; mix — grey
Packagingkit of 30 kg: component A — 20 kg pails, component B — 10 kg pails
Application methodbonding of CFRP laminates (lamellas) and steel plates; repair of small defects and levelling of the surface before bonding the CarbonWrap system; crack repair; installation of carbon rods (composite rebar); no separate primer required; A:B = 2:1 by weight; mixing with a low-speed mixer at 300–400 rpm with a paddle for 3 min, especially at the bottom and walls, until uniformly grey, then 1 min at low speed to reduce air entrainment; applied with a spatula
Application temperatureair +10…+35 °C; relative humidity no more than 80 %
Curingfull cure 7 days at 23 °C
Key propertiesdynamic viscosity, Brookfield RVT at 25 °C, 2 rpm: A (N=7) 700–1500, B (N=6) 1100–2000 Pa·s; mix density at 20 °C no more than 1.88 g/cm3; pot life at least 60 min at 20 °C, at least 30 min at 30 °C; bond strength (adhesion) > 2.5 MPa (failure in the concrete); shear strength (7 days at 23 °C) at least 12 MPa
Shelf life36 months from the date of manufacture; in intact factory packaging in warehouses at +5…+30 °C; do not stack pallets with components on top of each other
StandardsTU 20.52.10-051-38276489-2017 (identical to 2252-051-38276489-2017); STO No. 38276489.001-2017, STO No. 38276489.002-2017, STO No. 38276489.003-2017; certificate of conformity to the TU, certificate of conformity to the technical regulation on fire safety requirements, sanitary and epidemiological conclusion, SGR

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
