LEVL JOINT PANEL 240 — wide joint panel for movement joints
LEVL (INGRI)

LEVL JOINT PANEL 240 — wide joint panel for movement joints

Other floor materials

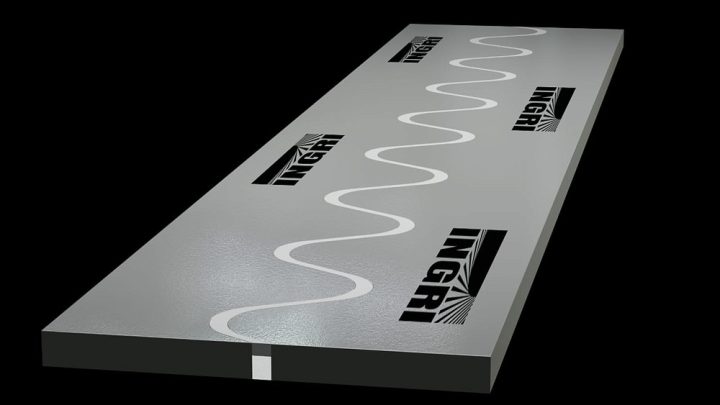

The wide version of the joint panel, LEVL JOINT PANEL 240, is designed for movement joints among others, as well as for thermal, shrinkage and transition joints. The panel is based on a composite polymer; the joint is filled with elastic polyurethane with elongation at break of at least 600 %. Compressive strength after 7 days is at least 60 MPa, flexural 35 MPa, abrasion up to 0.38 g/cm², mechanical loads very significant. Besides the straight panel, there are 240 X and 240 T elements and the asymmetric 240 E; installation by a specialist contractor.

Specifications

ManufacturerLEVL (INGRI) — OOO “Ingri”, Saint Petersburg
Typeflooring material
Useproduction workshops, warehouses and logistics, retail and public buildings, food and pharmaceutical
Basecomposite polymer base, elastic polyurethane joint infill
Colourgrey
Packagingpanel 1200 × 240 × 20 mm (± 2 mm); elements 240 X, 240 T and asymmetric 240 E
Application methodconstruction of movement, thermal, shrinkage and transition joints in floors; installation by a specialist contractor
Application temperature+5…+25 °C (surface and air)
Key propertiesCompressive strength (7 days) at least 60 MPa; flexural at least 35 MPa; Shore D hardness at least 80; elongation at break of the sealant at least 600 %; abrasion (wear) no more than 0.38 g/cm²; mechanical loads: very significant
Layer thickness20 mm (panel thickness)
Shelf life24 months; storage at +5…+35 °C, horizontally, away from UV
StandardsTU 22.23.19-127-94613022-2023; GOST R 58277-2018, GOST 24621-2015, GOST R 59523-2021, GOST 13087-2018

Data from the manufacturer’s technical data sheet. The coating system, number of coats and quantity are selected for your project on request.
